Included Software
The serial interface (RS-232) of each Detector Module continuously transmits the measuring data and may also be used to control the system. The scope of delivery of the Angle-Meter NT includes an application software for Win 9x / NT / 2000, which may be used  to save, analyze and visualize the system's output data in various representations. In addition, the complete system may be controlled over the RS-232 interface by the software. Below are some screenshots of the application software.

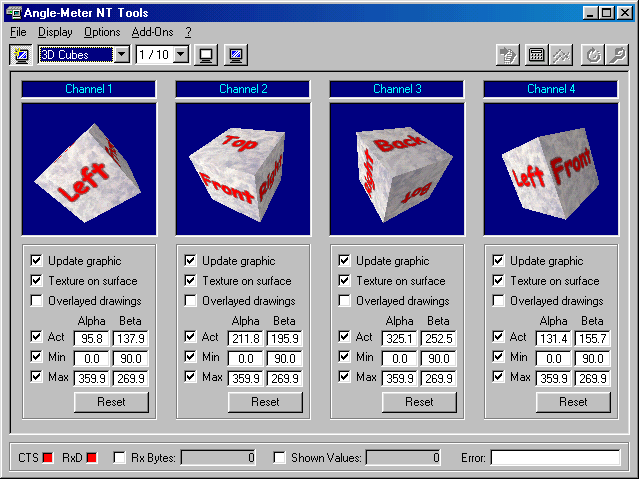

Representation of the angular data in real time (3D Mode)

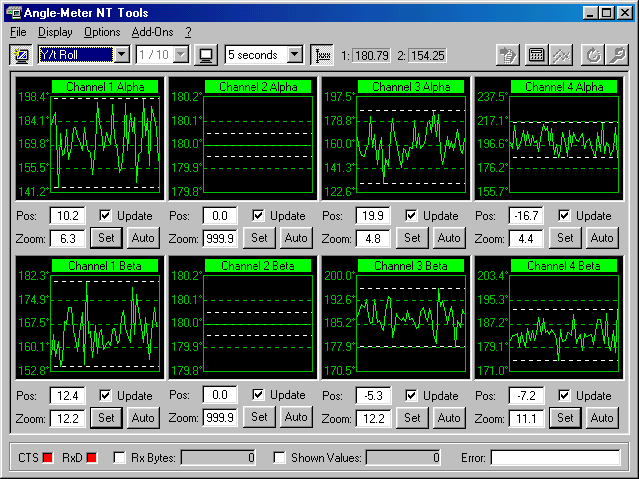

Representation of the angular data in real time (Roll Mode)

Representation of the angular data in real time (Text Mode)

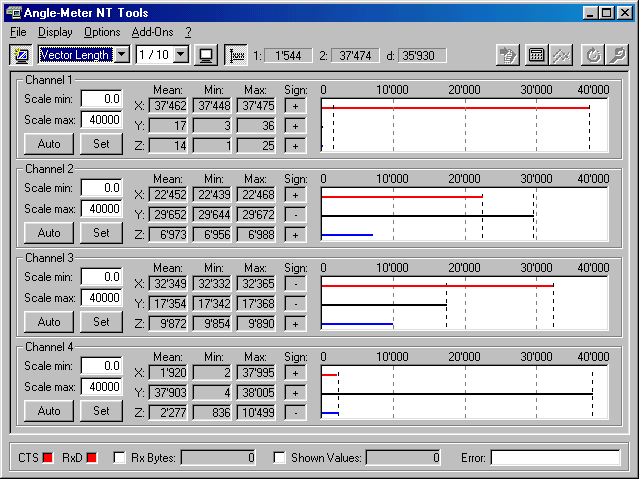

Representation of the angular data in real time (Raw Data Mode, Signals X, Y and Z)

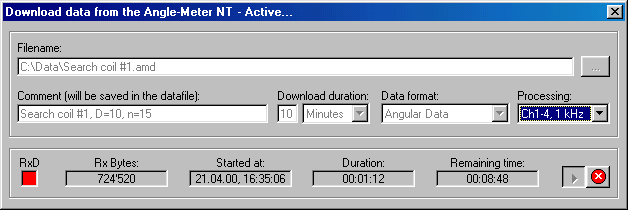

Download and save of the measuring data

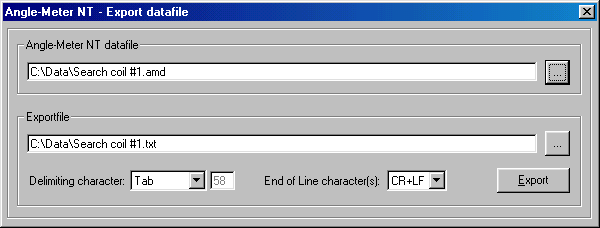

Export of saved measuring data

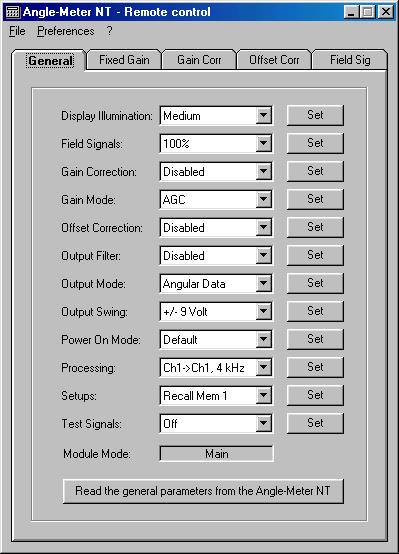

System control
